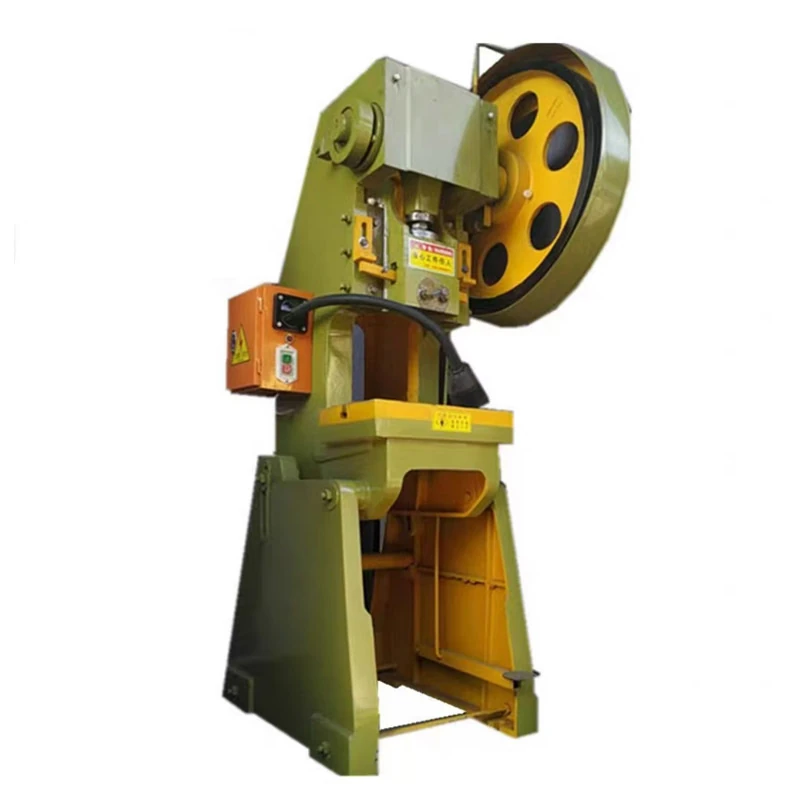

Punch Press V-Type Slitting Machine for Metal Mesh
High-performance industrial punch press V-type slitting machine engineered for precision cutting, slitting, and punching of metal mesh. Equipped with a rigid V-shaped press structure for vibration-free heavy workloads and a semi-automatic material feed system. Specifically engineered for high-volume filter frame preprocessing, it provides perfectly punched metal mesh borders. For complete mesh processing lines that feature integrated coil flattening and flat-sheet cutting, please refer to our Heavy-Duty Automatic Leveling, Slitting & Cutting Machine.
This industrial Punch Press V-Type Slitting Machine is engineered for high-precision slitting and punching of metal mesh, steel wire mesh, and filter frame related materials. Specifically designed to meet the strict production demands of industrial filtration manufacturing, it delivers exceptional performance, high accuracy, and consistent cut quality for diverse metallic mesh configurations.
Featuring a solid, rigid V-shaped press structure and an efficient semi-automatic material feeding system, this machine minimizes operational vibrations and stands as a reliable, heavy-duty solution for high-volume filter production lines.
Technical Specifications
To ensure exact mechanical alignment with your production line, the technical parameters of the machine are detailed below:
Technical Parameters
Factual Specifications
Machine Type
V-type punch press slitting machine
Applicable Material
Metal mesh, steel wire mesh, filter frame materials
Cutting Method
Simultaneous Punching & Slitting
Automation Level
Semi-automatic material feed system
Power Source
High-efficiency electric motor driven
Structural Material
Heavy-duty industrial steel frame
Warranty
1 Year
Origin
China
Key Features & Mechanical Advantages
1. Rigid V-Type Punch Press Design
The specialized V-shaped press structure provides enhanced rigidity and structural strength. This heavy-duty design minimizes mechanical vibration, ensuring stable, highly accurate cutting performance under heavy workloads.
2. Precision Slitting and Punching
Engineered to cut and punch metal mesh and filter frame components with controlled precision, ensuring uniform and burr-free outputs.
3. Automated Material Feeding Mechanism
Incorporates a semi-automatic feeding mechanism that maintains a consistent production flow, reducing manual handling and labor costs.
4. Industrial-Grade Construction
Built with an industrial steel frame and robust mechanical components to support continuous, 24/7 manufacturing operations with minimal maintenance.
5. Optimized Production Workflow
The optimized press design and blade arrangement minimize machine downtime, drastically increasing overall workshop throughput.
Applications & Industrial Uses
This highly precise V-type slitting press is ideal for preparing metallic components for:
Filter Frame Preprocessing: Slitting and cutting flat metal mesh components to size for heavy-duty filter outer frames.
Metal Mesh Slitting: Precision edge trimming and dimensional sizing of steel wire mesh used in industrial filtration.
Support Mesh Trimming: Cutting rigid supportive meshes for automotive, hydraulic, and heavy air filters.
Industrial Mesh Structure Fabrication: Automated punching and preparation of raw mesh rolls for industrial screens.
Why Partner with Fupei?
Tailored Engineering Services: Fupei specializes in custom filtration machinery, ensuring every machine is pre-assembled, wired, and trial-tested with actual metal mesh before delivery.
Global Electrical Compatibility: We configure the internal motors and wiring systems to support your specific factory grid voltage (e.g., 3-phase 380V/50Hz, 220V/60Hz, or 415V/50Hz).
Lifetime Post-Sales Support: We provide a comprehensive 1-year warranty, detailed electrical schematics, and permanent remote video troubleshooting support to keep your operations running smoothly.
Frequently Asked Questions
A: This machine is engineered specifically to process metal mesh, steel wire mesh, and filter frame related materials commonly used as supportive inner cores or outer cages in air filters.
A: The rigid V-type structure significantly improves mechanical rigidity, reducing machine vibration during high-speed punching and enhancing cutting accuracy.
A: Yes. The heavy-duty industrial steel frame construction, durable mechanical components, and semi-automatic feeding system are engineered to support continuous, high-volume production.
