Automatic Oil Separator Bottom Cap Seaming Machine

This high-precision Automatic Oil Separator Bottom Cap Seaming Machine is a specialized industrial system designed for the automated, leak-proof seaming of metal bottom caps onto the housings of oil-gas separator elements. Widely utilized in the production of rotary screw compressor filters, this equipment ensures a permanent, hermetic double-seam seal that can withstand immense operational pressures without leaking.

Equipped with high-precision hardened alloy seaming rollers, an intelligent PLC control system, and a pneumatic clamping mechanism, this seamer delivers consistent sealing pressure and perfect alignment tolerances. It is an indispensable asset for filtration manufacturers seeking to optimize production throughput, eliminate manual sealing errors, and meet rigorous ISO quality control standards for industrial separator cartridges.

Technical Specifications

To ensure exact mechanical alignment with your spin-on oil filter and separator production lines, the factual technical parameters are detailed below:

Key Features & Mechanical Advantages

1. High-Precision Double-Seam Lock

The machine utilizes multi-angle, CNC-ground seaming rollers that apply synchronized horizontal and vertical force. This mechanism wraps the edge of the metal bottom cap tightly around the outer filter housing, creating a robust, multi-layer double-seam lock that guarantees a 100% leak-proof connection.

2. Digital Adjustment and Multi-Product Versatility

Through the centralized HMI touchscreen, operators can adjust the spindle rotation speed, seaming roller feed rate, and height alignment tolerances in real-time. This digital control allows the workshop to quickly adapt the machine to different separator diameters (Φ100–350 mm) and heights (100–600 mm) in minutes.

3. Integrated Pneumatic Clamping & Safety Guards

Operating at a stable 0.6 MPa pneumatic pressure, the heavy-duty vertical clamping cylinder holds the filter element securely during the high-speed spinning process. Built-in physical safety guards and dual-button start-up controls protect operators from industrial hazards.

4. Rigid Construction for Continuous Manufacturing

Constructed with a heavy-duty steel alloy frame and vibration-damping foundation mounts, this seaming machine is engineered to survive continuous, high-volume production schedules with low mechanical wear, ensuring high repeatability and stable long-term throughput.

Applications & Industrial Uses

This automated bottom cap seamer is the essential finishing unit in assembly workshops manufacturing:

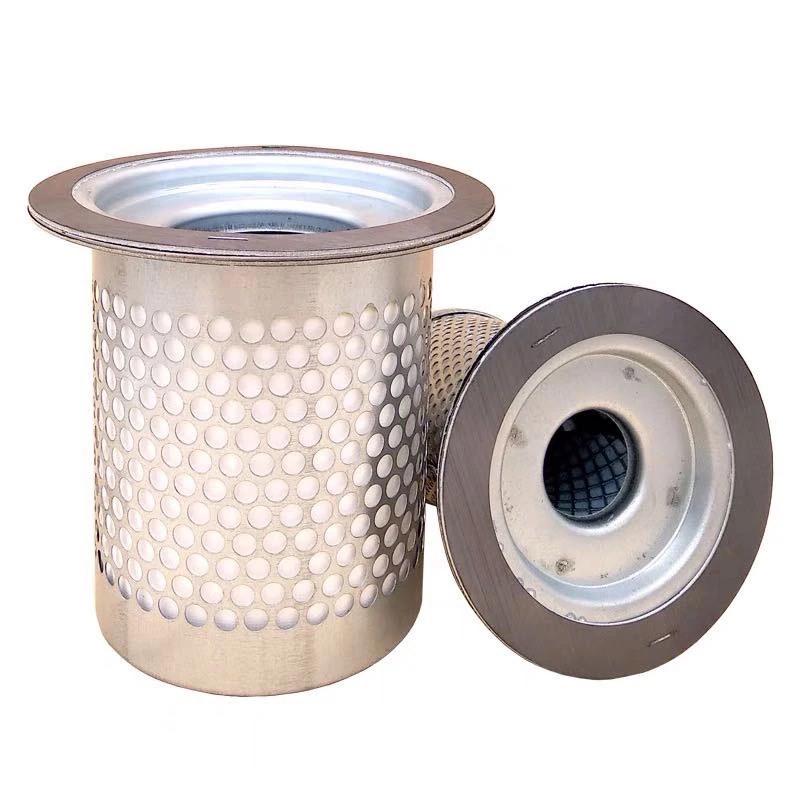

• Air-Oil Separator Elements: Sealing the heavy-duty bottom caps of coalescing separators used in industrial screw air compressors.
• Spin-on Oil Filters: Seaming the bottom end plates of spin-on automotive, agricultural, and construction machinery oil filters.
• Fuel-Water Separator Elements: Locking the bottom metal caps of high-pressure marine and truck fuel filters.

Why Partner with Fupei?

• Rigorous Factory Pre-Shipment Testing: Every bottom cap seaming machine undergoes continuous trial runs with actual metal filter elements at our facility to verify seaming pressure and leak-tightness before dispatch.
• Custom Voltage & Grid Compatibility: We configure the internal electrical motors, PLC, and drive systems to match your country’s industrial power grid (such as 3-Phase 380V/50Hz, 220V/60Hz, or 415V/50Hz) for rapid on-site commissioning.
• Global Technical Assistance: We provide a comprehensive 1-year warranty, complete electrical and pneumatic schematics, and permanent remote video troubleshooting support to ensure your workshop maintains continuous production.
