109mm Expanded Metal Spiral Tube Making Machine

This industrial 109mm Expanded Metal Spiral Tube Making Machine is engineered for forming highly accurate cylindrical mesh tubes directly from flat expanded metal sheets. It is designed to roll metal mesh into a tight, consistent spiral structure with defined specifications, providing robust inner or outer support frames for demanding industrial filter cartridges.

Equipped with an industrial drive system and heavy-duty rolling dies, this forming machine offers exceptional structural stability and high throughput. It is the ideal dedicated equipment for automated filter production lines and industrial wire mesh fabrication facilities seeking reliable, single-diameter tubular mesh forming with minimal mechanical adjustment.

Technical Specifications

To ensure exact mechanical compatibility with your filter production workshop, the factual parameters are detailed below:

Key Features & Mechanical Advantages

1. Precision 109mm Nominal Spiral Forming

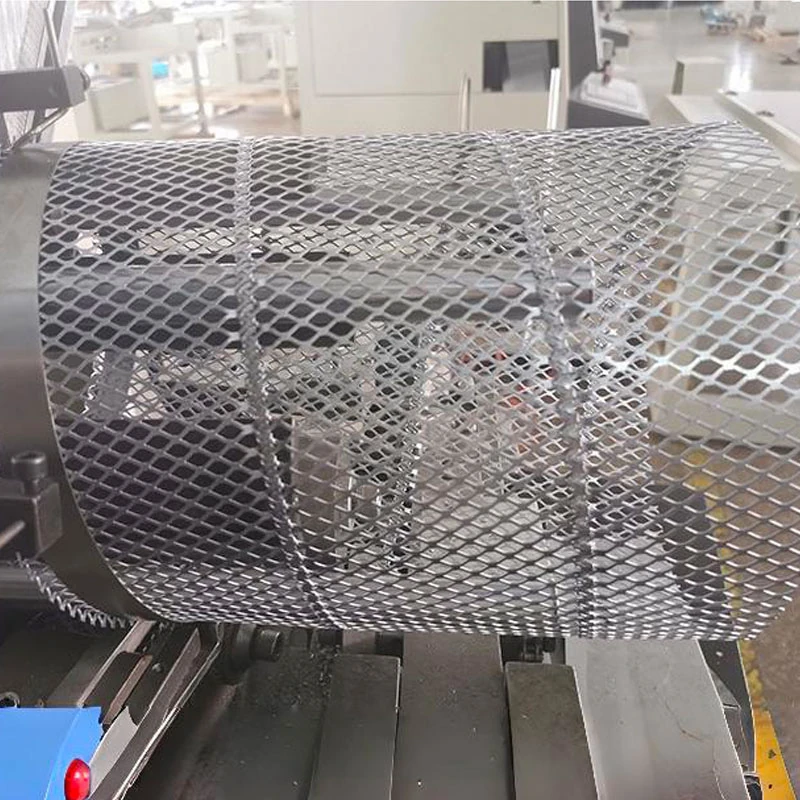

The forming rollers are precisely calibrated to produce cylindrical support tubes with a consistent 109mm nominal diameter. This tight mechanical tolerance ensures seamless fitting during subsequent filter media pleat assembly and end-cap bonding.

2. High-Efficiency Metal Sheet Rolling

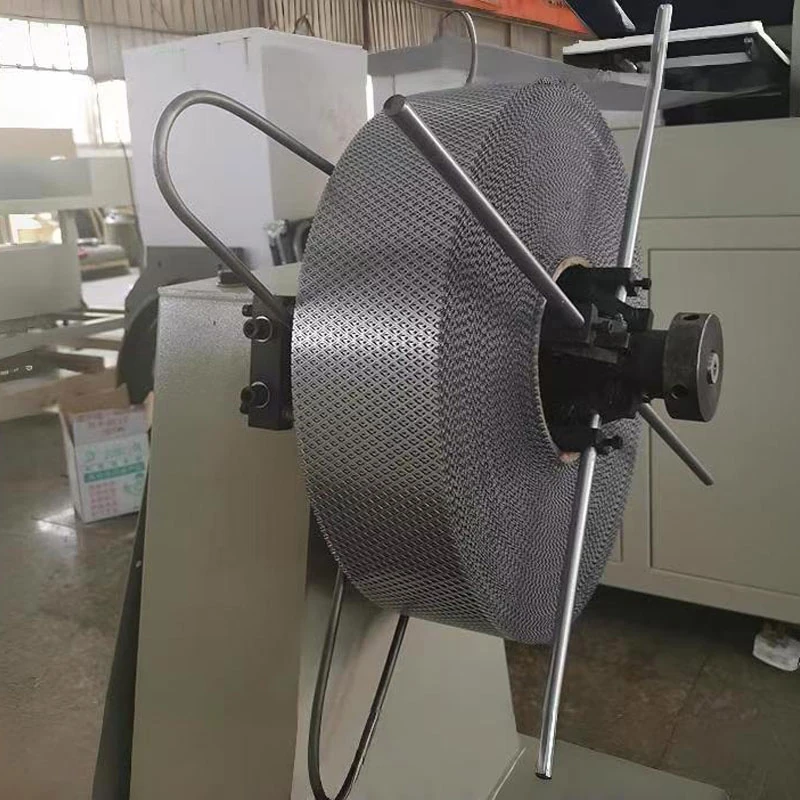

Designed with an optimized continuous feeding and rolling mechanism, this machine smoothly transforms expanded metal sheets into spiral tubes. This high-speed coiling process substantially increases workshop throughput while reducing material scrap rates.

3. Industrial-Grade Rigid Construction

The mechanical frame, transmission gears, and drive shafts are built using robust heavy-duty tool steel. This rigid structure provides vibration-free operation during continuous rolling cycles, ensuring a prolonged service life under intensive factory schedules.

4. Simple Operation and Maintenance

Featuring an intuitive and accessible mechanical layout, operators can set tube lengths and forming parameters with simple manual controls. The straightforward design reduces the learning curve for new operators and shortens routine maintenance downtime.

Applications & Industrial Uses

This specialized 109mm spiral mesh tube maker is widely used in production lines manufacturing:

• Filter Core Support Tubes: Inner and outer protective metal mesh frames for heavy-duty air filter elements.
• Industrial Filtration Components: Rigid central support structures for pleated dust collector cartridges and HVAC filters.
• Mesh Protective Sleeves: Outer metal protective jackets for industrial hydraulic oil filter cartridges.

Why Partner with Fupei?

• Strict Pre-Shipment Inspection: Every 109mm spiral tube forming machine undergoes rigorous trials with actual metal mesh at our facility, ensuring smooth rolling and perfect interlocking seams before leaving our factory.
• Global Voltage Support: We configure the internal motors and electrical control boxes to support your local industrial grid (such as 3-Phase 380V/50Hz, 220V/60Hz, or 415V/50Hz) for instant plug-and-play installation.
• Global Technical Assistance: We provide a comprehensive 1-year warranty, complete electrical schematics, and permanent remote video troubleshooting support to keep your production line running smoothly.
