Heavy-duty industrial slitting machine designed for precise, continuous slitting and rewinding of filter paper, non-woven fabrics, fiberglass, and metallic mesh. Featuring an adjustable slitting width up to 1300 mm, high-carbon alloy blades, and automatic tension control to ensure clean, burr-free roll edges. For applications requiring active Edge Position Control (EPC) web guiding, please view our Automatic Filter Media & Wire Mesh Slitting Machine.

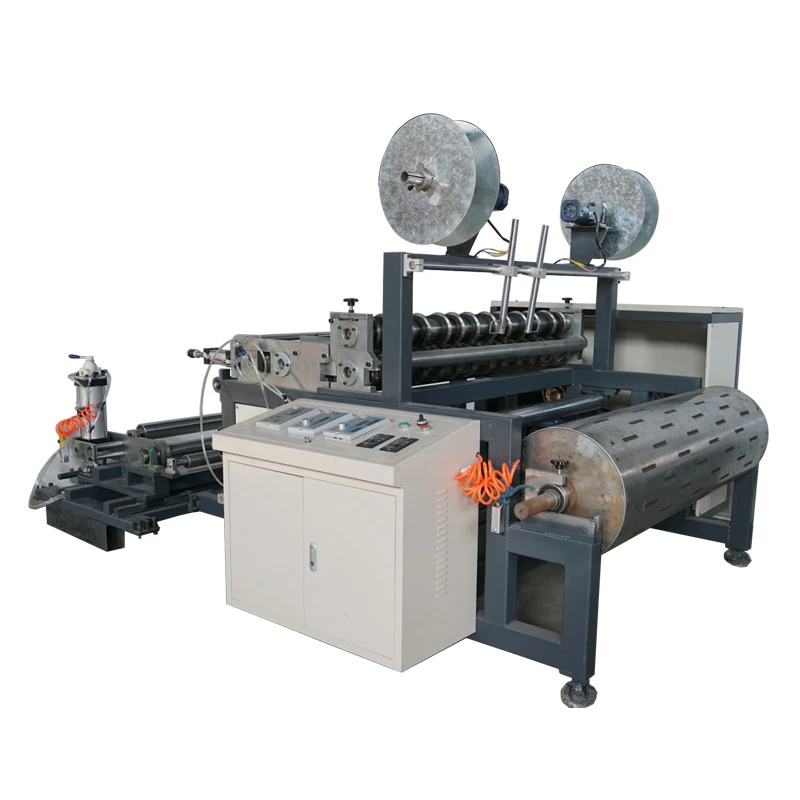

This heavy-duty Industrial Slitting Machine for Mesh and Paper is engineered specifically to meet the rigorous raw material preparation standards of the global filtration industry. Tailored for high-volume production, this machine delivers high-precision, continuous slitting and rewinding of diverse web rolls, including cellulose filter paper, non-woven fabrics, fiberglass cloth, and metallic support meshes.
Featuring an advanced automatic tension control system and a rigid high-carbon alloy cutting assembly, this slitter eliminates common defects such as material stretching, roll telescoping, and wrinkled winding. It provides a robust, highly reliable solution for factories and material suppliers that require consistent slit widths and clean, burr-free edges for downstream filter element folding and assembly.
Technical Specifications
To ensure this industrial slitting machine aligns with your raw material roll specifications, the factual parameters are detailed below:
Fully Adjustable (Variable speed frequency control)
Tension Control
Active automatic tension control system
Rewinding Method
High-precision roll winding
Power Supply
380V / 50Hz (Customizable to regional grid, 3-Phase)
Warranty
1 Year
Origin
China
Key Features & Mechanical Advantages
1. Outstanding Multi-Material Compatibility
The reinforced structural frame and robust drive system are engineered to process both soft, flexible media (like paper and non-wovens) and rigid metallic meshes on a single production line. This versatility maximizes workshop utility and floor space efficiency.
2. Precise and Clean Slitting Performance
Equipped with adjustable high-carbon alloy circular blades, the cutting station easily slices through abrasive materials without frequent blade wear. The mechanical alignment ensures highly accurate slit widths with minimal edge burrs.
3. Automatic Web Tension Control System
To maintain consistent material properties, the machine incorporates an automatic tension controller. By dynamically balancing the unwinding and rewinding forces, the system prevents material stretching, tears, and surface wrinkles.
4. Stable Winding & Uniform Roll Formation
The rewinding station is designed to prevent roll dislocation or uneven winding structures. This ensures that the finished, smaller rolls have completely flat side profiles and are ready for immediate use in high-speed rotary pleaters.
Applications & Industrial Uses
This industrial slitting and rewinding machine is widely deployed in filtration factories to produce:

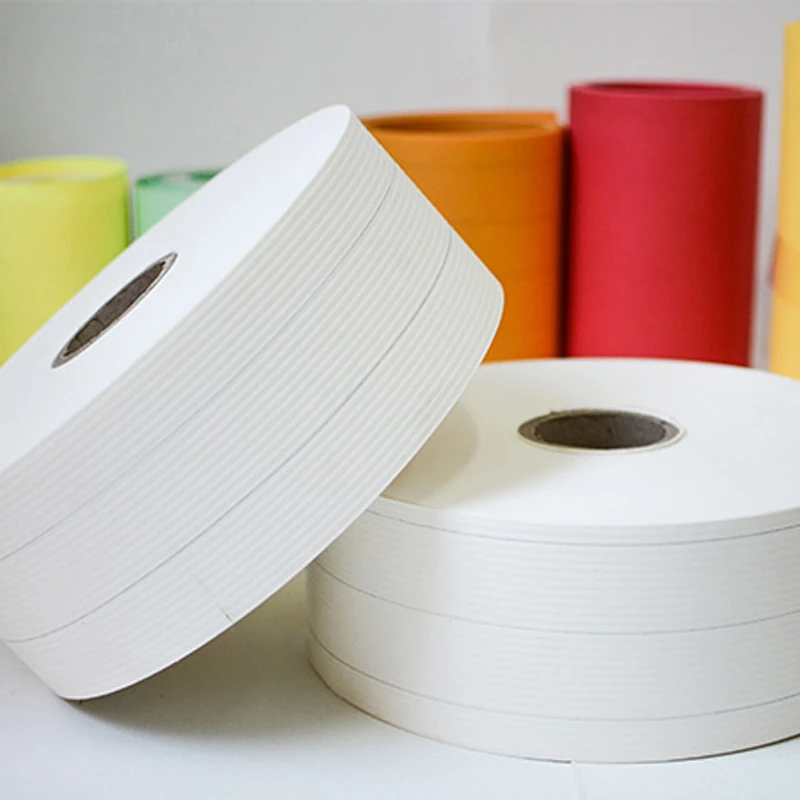

Filter Paper Rolls: Slitting wide-web cellulose papers for automotive air, cabin, and oil filter production.
Non-Woven & Fiberglass Media: High-precision preparation of synthetic filter layers for HVAC and cleanroom HEPA filters.

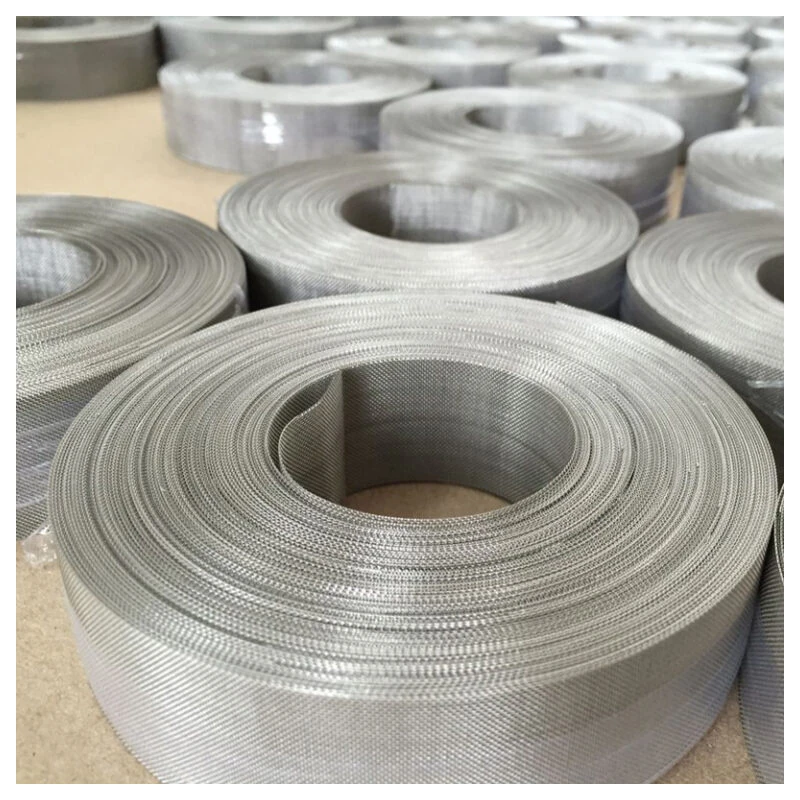

Support & Separation Layers: Slitting steel wire meshes and expanded metal rolls used to support pleated pleats under high pressure.
Why Choose Fupei as Your Filter Machinery Partner?
Decade of Manufacturing Expertise: With years of specialized research in filtration machinery, Fupei machines are built with industrial-grade mechanical stability and premium electronic components.
On-Site Customization Service: We customize the maximum winding diameter, working width, blade holder counts, and voltage standards to fit your local factory requirements.
Global Technical Support: Every machine is supplied with a comprehensive 1-year warranty, complete wiring diagrams, and life-long remote video troubleshooting support. We also provide on-site installation and operator training upon request.
Frequently Asked Questions
A: It is designed to process a wide range of roll-fed products used in filter manufacturing, including standard wood-pulp filter paper, synthetic non-woven fabrics, fiberglass cloth, and metallic meshes.
A: This specific slitting and rewinding machine supports a maximum working width of 1300 mm. However, we can customize wider configurations according to your specific raw material dimensions.
A: Yes, the machine includes an integrated automatic tension control system to maintain consistent winding quality, preventing material stretching, overlapping, or loose roll structures.
