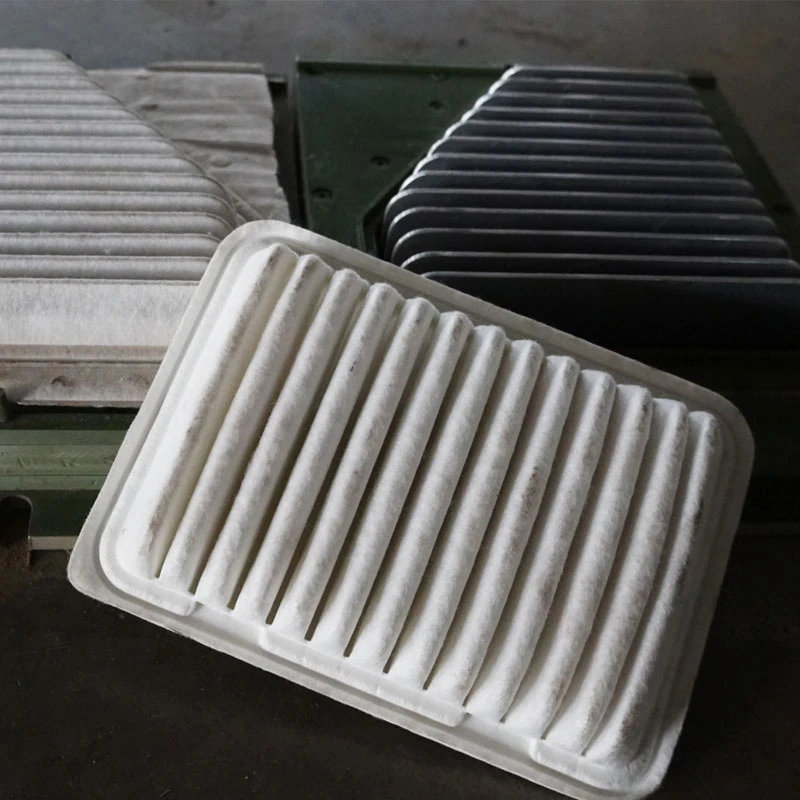

Eco Filter Heat Forming Machine for Cabin and Automotive Filters
This high-efficiency eco filter heat forming machine applies controlled thermal molding to shape automotive and cabin filters. It is perfectly optimized for thermal processing of composite media, ensuring stable form retention and improved durability. If you require premium paper rolls or non-woven media to feed this forming unit, please view our Filter Paper & Media.

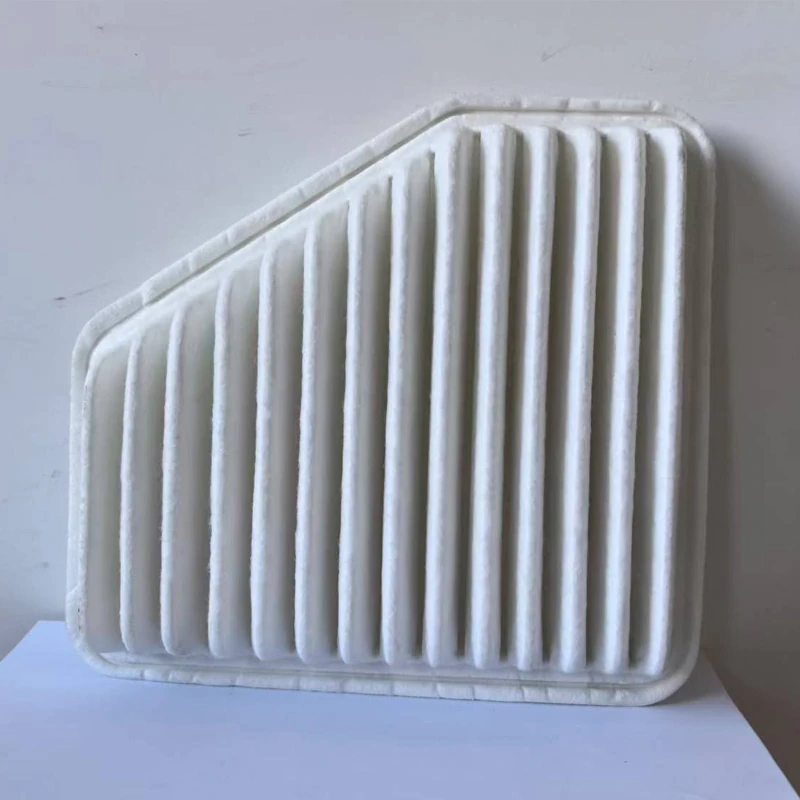

This professional ECO Filter Heat Forming Machine is specifically engineered to shape cabin air filters, automotive air filters, and similar composite filter media using precise thermal molding technology. By heating and molding filter components under stable, controlled temperatures, it ensures permanent shape retention, enhanced structural durability, and maximum dimensional consistency across mass production runs.
The automated system is highly favored by global filter manufacturers focusing on eco-friendly, glue-free, or composite filter designs. Featuring a 3 kW heating capacity, touchscreen HMI controls, and robust mechanical tooling, it is the premier choice for automotive climate control filter lines seeking high repeatable quality and low rejection rates.
Technical Specifications
To ensure exact mechanical and electrical compatibility with your filter assembly workshop, the factual parameters are detailed below:
Technical Parameters
Factual Specifications
Applicable Filters
Cabin filter, automotive air filter
Forming Method
Controlled heat forming
Control System
Touchscreen HMI
Material Compatibility
Filter media and composite materials
Voltage
380V / 50Hz (Customizable to local grid)
Power
3 kW
Warranty
1 Year
Origin
China
Key Features & Mechanical Advantages
1. Precise Controlled Heat Forming Technology
The machine applies highly uniform, regulated heat directly to the composite filter media. This uniform thermal distribution stabilizes the synthetic fibers and pleat joints, allowing them to adapt perfectly to the mold shape with zero structural warping.
2. Intuitive Touchscreen HMI Control
Equipped with an advanced PLC coupled with a high-sensitivity touchscreen HMI, operators can set precise temperature limits and adjust the forming dwell times digitally. This simplifies setup and enables rapid changeovers between automotive engine and cabin filters.
3. Enhanced Filter Strength and Form Retention
The controlled thermal processing solidifies the filter media structure, preventing collapsing or deformation under high-velocity ventilation airflow. This stable shape retention drastically reduces product defects and material rejects.
4. Robust and Reliable Industrial Construction
Built with premium-grade steel framing, heavy-duty pneumatic actuators, and highly efficient heating elements, the machine is designed for continuous, multi-shift factory operation with minimal maintenance downtime.
Applications & Industrial Uses
This eco-friendly thermal shaping machine is widely integrated into production lines for:
Cabin Air Filter Shaping: Permanent edge and panel heat forming for passenger vehicle HVAC filters.
Automotive Air Filter Forming: Shaping non-woven and composite filter media for car engine air inlets.
Strict Pre-Shipment Inspection: Every ECO filter heat forming machine is thoroughly tested with actual filter media at our facility, ensuring that the heating plates distribute temperature evenly and the forming molds align perfectly.
Global Electrical Compatibility: We configure the internal electrical components, heating coils, and power relays to perfectly support your local industrial grid (such as 3-Phase 380V/50Hz, 220V/60Hz, or 415V/50Hz) for instant integration.
Permanent Technical Support: Every machine is supplied with a comprehensive 1-year warranty, complete electrical schematics, and permanent remote video troubleshooting assistance.
Frequently Asked Questions
A: This machine is specifically designed for processing cabin air filters, automotive air filters, and similar composite non-woven or synthetic filter media. If you require raw non-woven rolls or filter paper to feed this machine, please check our Filter Paper & Media category.
A: Controlled heating softens and reorganizes the polymer fibers in synthetic and composite media, permanently stabilizing the pleated filter dimensions and enhancing the mechanical strength of the overall element.
A: Yes, the user-friendly touchscreen HMI allows operators to set precise temperature profiles, forming times, and production speeds digitally, making it simple to run and adjust during shift changes.
