Automatic Frame Gluing Machine for Filter Elements

This professional Automatic Frame Gluing Machine for Filter Elements is engineered for precise, high-efficiency hot melt glue application along the outer edges and frames of panel filter elements. It serves as a vital edge-sealing station to ensure that the pleated filter media is securely bonded to its protective outer border, creating an airtight seal that prevents unfiltered air bypass and guarantees optimal filtration performance.

Equipped with a 10 kg hot melt glue injection system and driven by a stable 3.8 kW motor, this machine operates at a consistent speed of 2 pieces per minute. By focusing on mechanical simplicity, low maintenance, and highly reliable bonding strength, this machine provides an extremely cost-effective and dependable production solution for small-scale factories, custom workshops, and budget-sensitive filter assembly lines.

Technical Specifications

The factual technical parameters of the frame gluing machine are detailed below to ensure exact mechanical compatibility with your filter assembly operations:

Key Features & Engineering Advantages

1. Simple & Effortless Operation

The machine is designed for plug-and-play ease of use, requiring no complex computer programming or highly specialized operators. Minimal training is needed, allowing your workshop staff to run and monitor the edge-gluing process immediately with maximum safety.

2. High-Value Cost-Effective B2B Production

Specifically configured for small-to-medium enterprises (SMEs) and specialized custom filter lines, this machine offers low initial capital investment while delivering industrial-grade edge bonding quality that rivals large, complex automated systems.

3. Integrated 10 kg Hot Melt Glue System

The 10 kg hot melt adhesive melting and injection system applies glue smoothly and uniformly along the filter’s borders. The high-strength hot melt glue ensures durable, temperature-resistant edges that maintain filter panel structural integrity under heavy air velocity.

4. Versatile Application (Primary, Medium, & HEPA)

With a spacious 1100 × 700 mm frame handling capacity, the machine easily accommodates various panel filter designs, including low-efficiency primary pre-filters, medium-efficiency synthetic pocket frames, and high-efficiency HEPA air purification panels.

5. Simple Maintenance & Quick Cleanups

The uncluttered mechanical layout allows for quick access to the adhesive nozzle and the heating pot. Cleaning and routine servicing can be completed in minutes, drastically reducing daily maintenance overhead and keeping your assembly line active.

Applications & Industrial Uses

This automated frame edge-gluing machine is widely utilized in filtration workshops producing:

• Primary Air Pre-Filters: Fast border-sealing of pleated cellulose and synthetic media into cardboard or aluminum frames.
• Medium-Efficiency HVAC Filters: Rigidly bonding pocket or panel filter packs into commercial air conditioning borders.

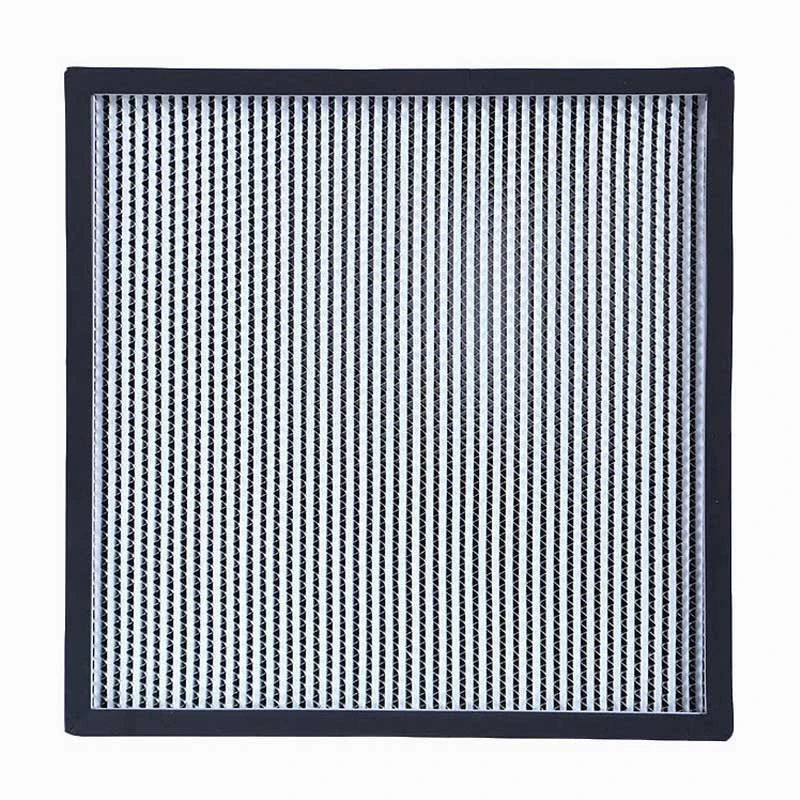

• High-Efficiency HEPA Panels: Precision edge potting of deep-pleat glass fiber packs for cleanroom and medical air purifiers.

Why Partner with Fupei?

• Strict Factory Quality Inspection: Every filter frame gluing machine undergoes rigorous trial runs with actual hot melt adhesives and sample frames at our facility to guarantee dispensing consistency before shipping.
• Custom Voltage Support: We configure the internal electrical motors, heating elements, and control circuits to match your regional power standards (such as 3-Phase 380V/50Hz, 220V/60Hz, or 415V/50Hz) for instant plug-and-play installation.
• Life-Long Technical Assistance: Every machine is supplied with a comprehensive 1-year warranty, complete electrical schematics, and permanent remote video troubleshooting support to keep your production line running smoothly.
