Heavy-duty Slitting Machine 1250 designed for high-precision converting of filter paper, non-woven fabric, fiberglass cloth, and mesh materials. Featuring a standard 1250 mm maximum working width, premium high-carbon alloy blades, and an automatic tension control system to guarantee clean, burr-free roll edges. For wider materials or more specific metallic mesh slitting configurations up to 1300 mm, please view our Industrial Slitting Machine for Mesh and Paper.
The Slitting Machine 1250 is a robust and versatile industrial cutting solution engineered specifically for filter paper, non-woven fabric, fiberglass cloth, and other web materials used in filtration product manufacturing. Unlike generic slitting machinery, this professional slitter is specifically optimized to accommodate the unique physical properties of filter media, such as material fragility, flexibility, and thickness variations.
By performing highly precise continuous slitting and rewinding, this machine helps filtration factories achieve consistent strip widths and significantly improve raw material utilization rates. Equipped with an active automatic tension control system and high-durability cutting mechanics, the Slitting Machine 1250 delivers exceptionally stable, long-term performance under demanding, high-volume production schedules.
Technical Specifications
To ensure this high-precision industrial slitting machine aligns with your raw material roll specifications, the factual parameters are detailed below:
This machine is designed to handle a broad spectrum of filtration raw materials. Whether you are slitting delicate fiberglass webs, flexible non-woven fabrics, standard wood-pulp filter papers, or protective industrial mesh backing, this system processes them with uniform ease.
2. Precise and Stable Slitting Performance

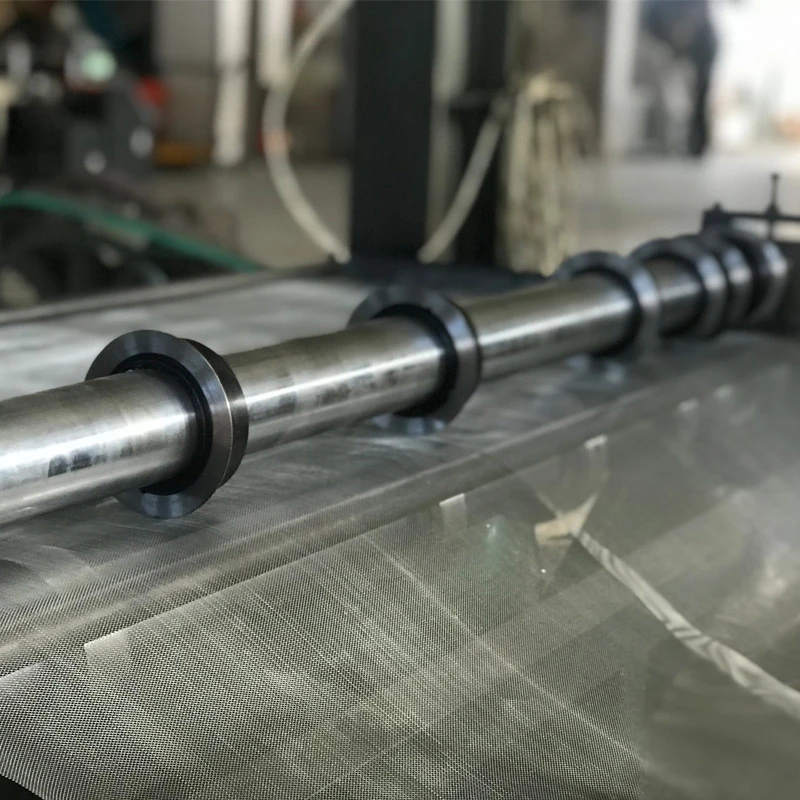

Equipped with premium high-carbon alloy steel blade sets and adjustable cutting width fixtures, the machine produces sharp, clean edges with zero fiber fraying or wire burrs. This high accuracy reduces scrap rates and lowers total production costs.
3. Automatic Web Tension Control System
To maintain consistent material properties, the machine incorporates an automatic tension controller. By dynamically balancing the unwinding and rewinding forces, the system prevents material stretching, tears, and surface wrinkles.
4. Smooth Winding & Even Roll Structure
The stable rewinding system is designed to prevent roll telescoping, lateral shifting, or uneven winding. This ensures that the finished, smaller rolls have flat, clean side profiles, allowing them to feed smoothly into downstream high-speed rotary pleating machinery.
5. Operator-Friendly Setup and Adjustments
Featuring intuitive, simple control mechanisms, operators can quickly configure the target cutting widths, feed speed, and tension parameters, minimizing machine idle times during batch changeovers.
Applications & Industrial Uses
This specialized 1250 mm wide slitting and rewinding machine is widely utilized in filtration workshops to produce:
HVAC & Cabin Air Filters: Slitting wide-web cellulose papers and synthetic media rolls to exact widths for panel filters.
Industrial Dust Collectors: Precision converting of non-woven and fiberglass materials for commercial baghouse filtration.

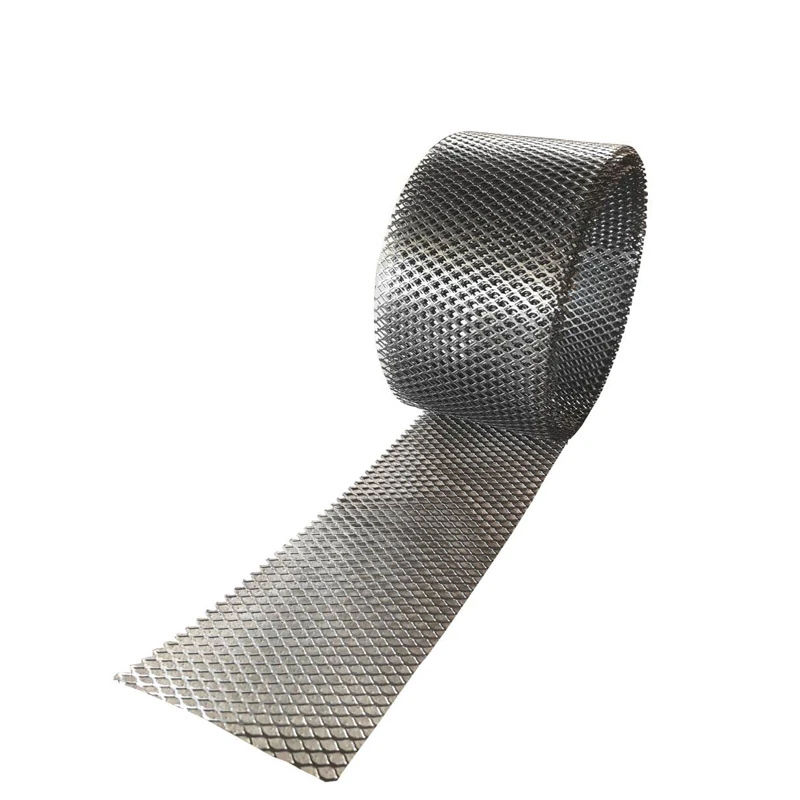

Support & Separation Layers: Slitting industrial wire meshes and expanded metal foils used to reinforce pleated elements.
Why Choose Fupei as Your Filter Machinery Partner?
Decade of Manufacturing Expertise: With years of specialized research in filtration machinery, Fupei machines are built with industrial-grade mechanical stability and premium electronic components.
On-Site Customization Service: We customize the maximum winding diameter, working width, blade holder counts, and voltage standards to fit your local factory requirements.
Global Technical Support: Every machine is supplied with a comprehensive 1-year warranty, complete wiring diagrams, and life-long remote video troubleshooting support. We also provide on-site installation and operator training upon request.
Frequently Asked Questions
A: It is designed specifically to process standard wood-pulp filter paper, synthetic non-woven fabrics, fiberglass cloth, and lighter-weight industrial screen support meshes used in filter manufacturing.
A: This specific slitting and rewinding machine supports a maximum working width of 1250 mm, which is ideal for most wide-width filter material rolls commonly supplied in the global market.
A: Yes, the machine includes an integrated automatic tension control system to maintain consistent winding quality, preventing material stretching, overlapping, or loose roll structures.
