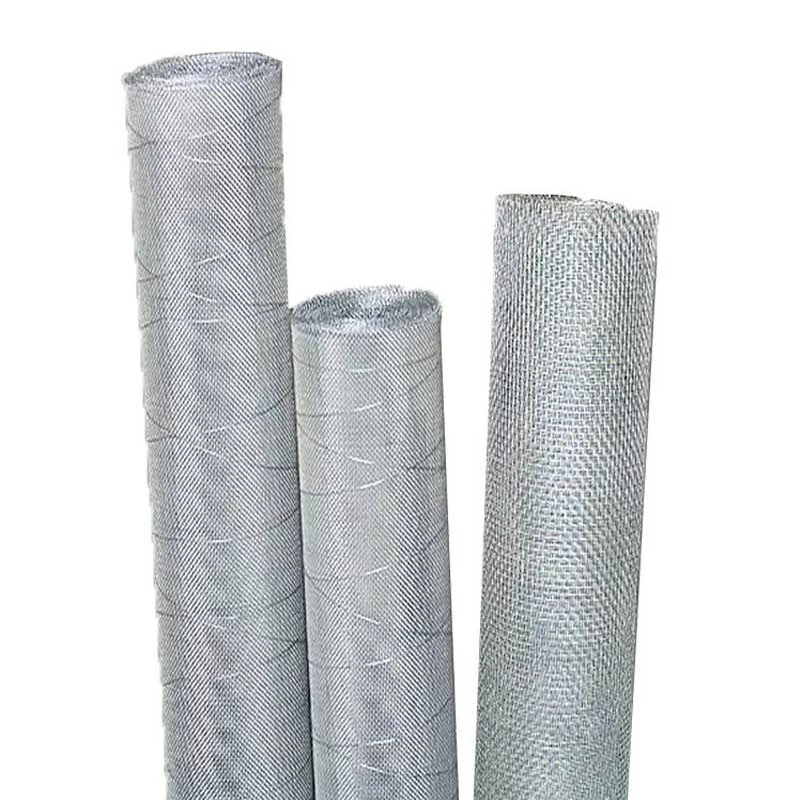

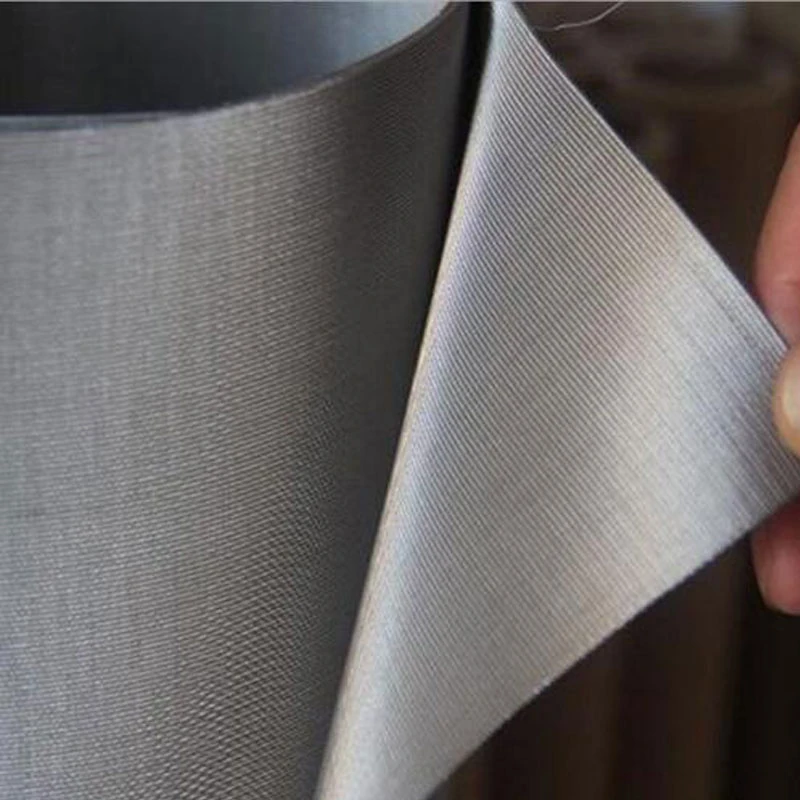

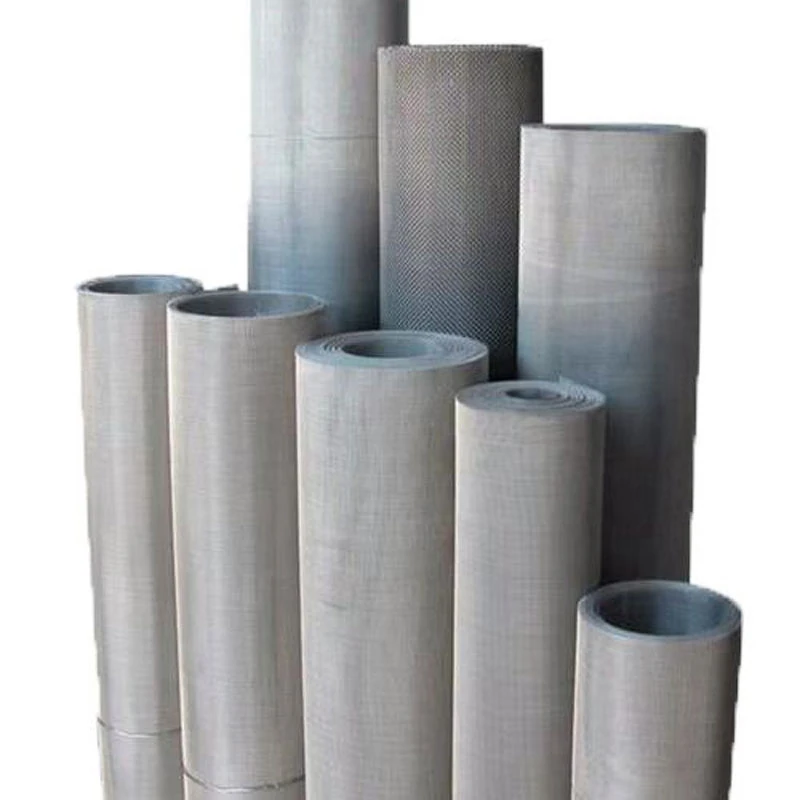

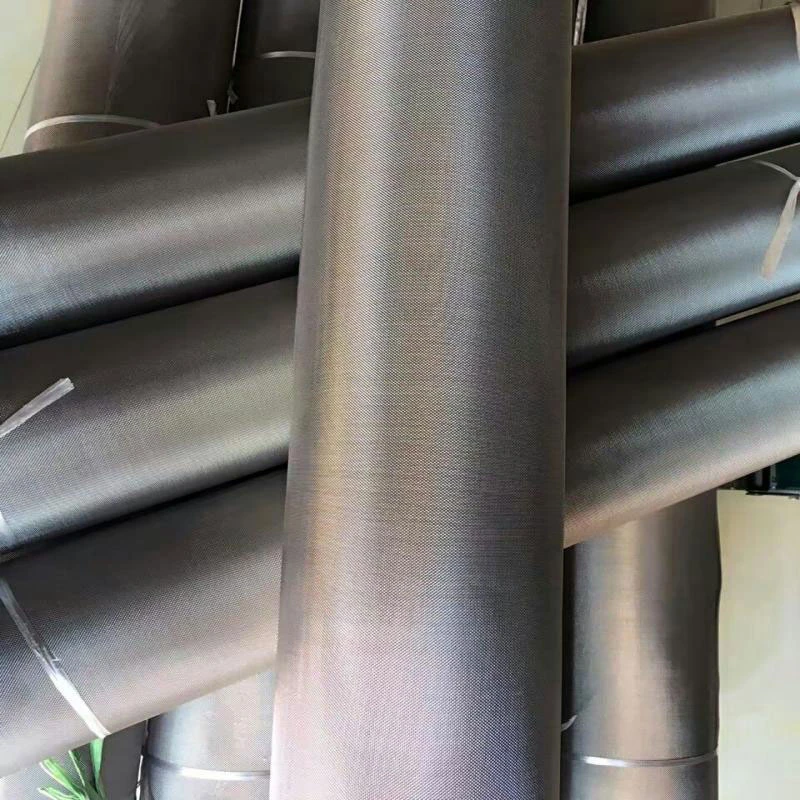

Stainless Steel Wire Mesh for Industrial Filtration
Premium industrial-grade stainless steel wire mesh rolls engineered for precise separation and filtration of gases, liquids, and solids. Available in high-performance grades (SUS 304, 304L, 316, 316L, 904, 310, 310S, 410, 430) and woven structures including plain, twill, and high-accuracy Dutch weave. Acid, alkali, and high-temperature resistant—perfectly processed and sized using our Filter Media Slitting & Rewinding Machines.
Our Stainless Steel Wire Mesh is a high-performance, grid-like engineering material woven from premium stainless steel wires in the warp (longitudinal) and weft (transverse) directions. This structure produces a robust filtration screen with highly precise, uniform openings designed to filter and screen gases, liquids, and solids, and to separate different media in complex process flows.
By choosing high-grade alloys (such as SUS 304, 316L, or 310S) as the basic material, this wire mesh gains exceptional corrosion, acid, alkali, and high-temperature resistance. Its inherent mechanical strength provides excellent wear resistance, making it suitable for long-term continuous operation under harsh, abrasive industrial environments. It is widely used as the core supportive, protective, or primary filtration layer in industrial filter assemblies.
Technical Specifications
The factual chemical parameters, material grades, and weaving structures of our Stainless Steel Wire Mesh are detailed below:
Technical Parameters
Factual Specifications
Material Grades
SUS / AISI 304, 304L, 316, 316L, 904, 310, 310S, 410, 430 etc.
The high corrosion resistance of stainless steel means that when exposed to moisture or aggressive chemicals, the mesh will not rust or degrade quickly. This durability translates directly to lower replacement costs, less downtime, and longer filtration cycles on your factory floor.
2. High-Temperature Stability & Resistance
Woven from high-temperature resistant alloys like grade 310S, our mesh can withstand extreme thermal conditions. This makes it the ideal choice for filtration applications involving high-temperature gases, steam, or molten polymer materials (up to 1000°C) without physical deformation.
3. Versatile Weaving Patterns for Diverse Media
We offer different weaving methods suitable for various industrial occasions:
Plain Weave: Offers highly uniform, square openings, providing excellent filtering performance suitable for standard gas and liquid filtration.
Twill Weave: Allows for thicker wires and higher physical strength, making it ideal for sieving heavy particles and solids.
Dutch Weave (Mat Weave): Features dense, tightly packed warp and weft wires, providing ultra-high filtration accuracy (1–300 μm) for precision filtration.
4. Outstanding Strength-to-Weight Ratio
The woven grid structure provides high tensile strength and rigidity. This enables the wire mesh to withstand significant pressure differentials inside filtration systems without deforming or shedding wires, ensuring high-purity filtrate.
Applications & Industrial Uses
Our stainless steel filter wire mesh is widely deployed across a variety of demanding sectors:
Petroleum & Petrochemical: Filtering corrosive chemicals, raw crude oil, and drilling fluids under high pressure.
Automotive & Hydraulic Systems: Used as supportive core mesh and outer protective sleeves for oil filters and hydraulic cylinder filter elements.
Food, Beverage & Pharmaceutical: Precise, hygienic screening and clarifying of liquids complying with food-contact regulations.
Aerospace & High-Pressure Filtration: High-accuracy filtration of aviation fuel and hydraulic fluids.
Why Partner with Fupei?
Machinery-Optimized Cutting: Because stainless steel wire mesh is rigid and challenging to slit cleanly, we test and size our mesh rolls using our own Filter Media Slitting & Rewinding Machines to guarantee clean, burr-free edges and tight rewinding tolerances.
Strict Chemical Grade Verification: We conduct rigorous spectrometer testing to verify the exact alloy composition (such as nickel and chromium levels in SUS 316L) to ensure it complies with your certified engineering standards.
Custom Slitting & Fabrication: We supply standard bulk rolls as well as custom-slit strips, multi-layer spot-welded filter packs, or fabricated cylinder elements tailored to your factory’s exact machinery.
Frequently Asked Questions
A: For standard industrial environments, SUS 304 is highly cost-effective. However, for chloride-containing environments, marine applications, or highly corrosive acids, we strongly recommend SUS 316 or 316L. These grades contain molybdenum, which significantly enhances resistance to pitting and crevice corrosion.
A: Plain Weave features a simple one-over, one-under wire pattern with square openings, ideal for standard gas/liquid filtration and particle screening. Dutch Weave (also called Mat Weave) uses heavier warp wires and finer, closely-packed weft wires. This produces a dense, wedge-shaped gap that enables high-strength micro-filtration (down to 1–5 μm) suitable for high-pressure systems.
A: Yes, absolutely. We can slit our bulk wire mesh rolls into extremely narrow strips with high precision. By using our robust Filter Media Slitting & Rewinding Machines, we ensure that the slit edges are completely clean and free of loose wires, making them ready for direct feed into your filter core pleating or assembly lines.
