Highly automatic glass fiber filter pleating and gluing machine engineered for HEPA and high-precision air filters. Features a 3.5 kW motor drive, 0.6 MPa working air pressure, and an intelligent touchscreen HMI control for automated hot-melt glue dispensing. If your factory requires non-glued mechanical pleating, please view our Precision CNC Knife Pleating Machine.
This professional Glass Fiber Filter Pleating and Gluing Machine is specifically engineered for processing delicate glass fiber filter media, fiberglass rolls, and high-efficiency non-woven materials. It is the ideal manufacturing solution for producing pleated filter elements that require both exceptional dimensional accuracy and a stable adhesive application.
The automated system seamlessly integrates precise mechanical pleating and controlled hot-melt glue strip dispensing to secure the pleats firmly in place. This advanced structural design significantly enhances the finished filter element’s mechanical strength, shape retention, and downstream filtration performance in high-velocity airflow environments.
Technical Specifications
To ensure seamless integration with your filter production lines, the factual technical parameters are detailed below:
Technical Parameters
Factual Specifications
Applicable Material
Glass fiber filter media & similar non-woven materials
Pleat Width
Fully Adjustable (Customizable to your production requirements)
The advanced pleating mechanism ensures strict consistency in both fold depth and pleat pitch. This uniform geometry produces evenly pleated filter media rolls, which maximizes the overall filtration surface area and increases particulate holding capacity.
2. Automated Controlled Glue Dispensing
Equipped with an advanced adhesive application system, the machine dispenses hot-melt glue lines precisely along the filter pleats. This controlled application guarantees firm pleat bonding without adhesive overflow, misalignment, or raw material waste.
3. Intuitive Touchscreen HMI Controls
The user-friendly interface allows machine operators to digitally program and adjust the pleat spacing, glue line intervals, glue flow parameters, and overall production speed, simplifying on-site setup and reducing product changeover times.
4. Robust Industrial Structural Frame
Constructed with high-strength, heavy-duty industrial components, this machine is built to support continuous, high-volume production schedules with minimum mechanical vibration and stable long-term throughput on the factory floor.
Applications & Industrial Uses
This complete pleating and gluing machine is highly utilized by filter media manufacturers to produce:

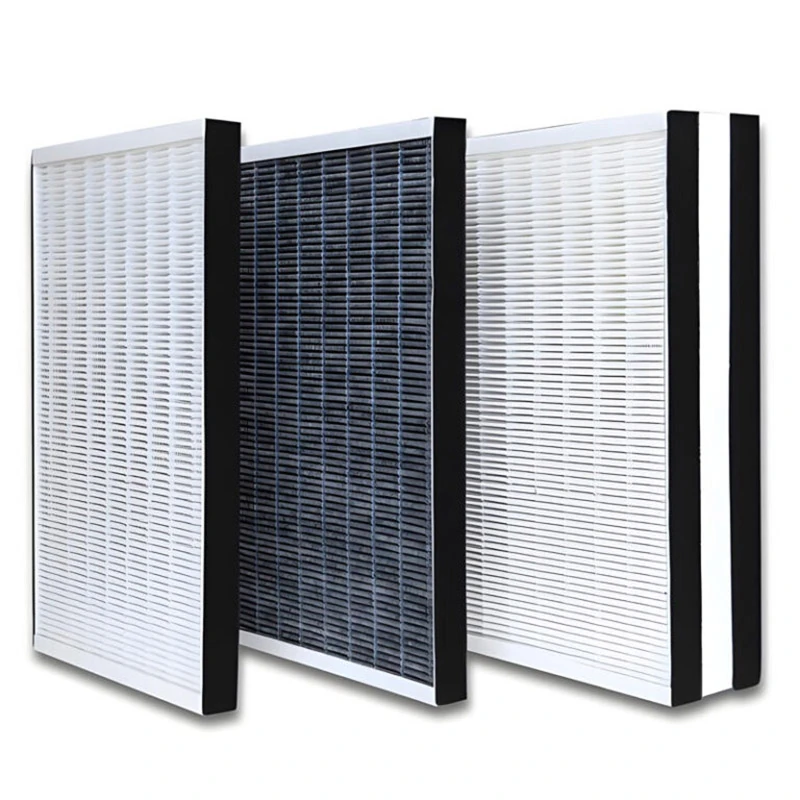

HVAC Pleated Filters: High-capacity air filters for residential, commercial, and industrial air handling systems.
Industrial Air Filtration Elements: Heavy-duty dust collector filter cartridges and intake filter panels.
Automotive Filtration Components: Highly efficient vehicle cabin filters and protective engine air filtration inserts.
Why Partner with Fupei?
Strict Factory Quality Inspection: Every glass fiber gluing and pleating machine undergoes rigorous trial runs with real media at our facility to guarantee mechanical alignment before shipping.
Custom Voltage Support: We configure the internal electrical motors and heating coils to match your country’s industrial power grid (such as 380V/50Hz, 220V/60Hz, or 415V/50Hz) for instant plug-and-play installation.
Global Technical Assistance: We provide a comprehensive 1-year warranty, complete electrical schematics, and permanent remote video troubleshooting support to keep your production line running smoothly.
Frequently Asked Questions
A: This machine is specifically designed for glass fiber filter media, fiberglass rolls, and similar non-woven technical materials. For standard cellulose paper filtration media that does not require inline glue strip application, we suggest using our Precision CNC Knife Pleating Machine.
A: Yes, the glue dispensing system is fully adjustable. Operators can easily modify the glue flow rate, strip spacing, and gluing intervals directly from the control panel to perfectly match your specific pleat pitch and media characteristics.
A: Yes, the machine features a high-sensitivity touchscreen HMI integrated with a stable PLC. This system allows for intuitive, real-time parameter setting, production monitoring, and instant troubleshooting diagnostics on the factory floor.
