Automatic Pool Filter Tape Winding Machine

This professional Automatic Pool Filter Tape Winding Machine is designed to wrap structural reinforcing cloth tape or straps around pleated pool filter cartridges. By utilizing a highly automated hot melt glue bonding process, this strapping system securely binds the outer pleats, dramatically increasing structural durability, preventing cartridge collapse under heavy water pressure, and extending the filter’s operational lifespan.

Equipped with an advanced CNC control system, it provides micro-level adjustments over wrapping tension and rotational speed. Featuring automatic material cutting and neat end-securing, this machine delivers consistent, tight, and uniform wraps with zero manual intervention, making it an essential asset for high-yield pool and spa filter manufacturing lines.

Technical Specifications

To ensure exact mechanical compatibility with your factory floor requirements, the technical parameters of the machine are detailed below:

Key Features & Mechanical Advantages

1. High-Precision CNC Winding System

The integrated CNC controller allows precise regulation of both the rotation speed and the feeding tension of the tape. This ensures that every layer of polyester or non-woven tape is wrapped with consistent tightness, avoiding loose folds or compression wrinkles.

2. Automatic Edge Cutting & Gluing Cycles

Once the wrapping program is completed, the machine automatically cuts the hot-melt tape and fuses the ending flap securely. This automated sequence ensures consistent adhesion quality, reduces operational cycle times, and minimizes hot-melt adhesive waste.

3. Intuitive Touchscreen HMI Controls

The digital control panel makes parameter setup, real-time cycle monitoring, and multi-specification storage simple. Operators can quickly retrieve preset programs for different pool filter diameters (100–350 mm), reducing changeover idle times.

4. Broad Multi-Material Compatibility

The specialized winding head is engineered to work seamlessly with a wide range of materials, including polyester fiber tape, non-woven fabric ribbons, and other industrial-grade reinforcing strapping bands to meet diverse client specifications.

5. Rugged Industrial-Grade Structure

Weighing 510 kg and built upon a heavy-duty steel frame, the machine provides extreme mechanical stability during high-speed winding cycles, minimizing wear and ensuring continuous, round-the-clock factory performance.

Applications & Industrial Uses

This automated CNC tape winding machinery is widely utilized in filtration factories to produce:

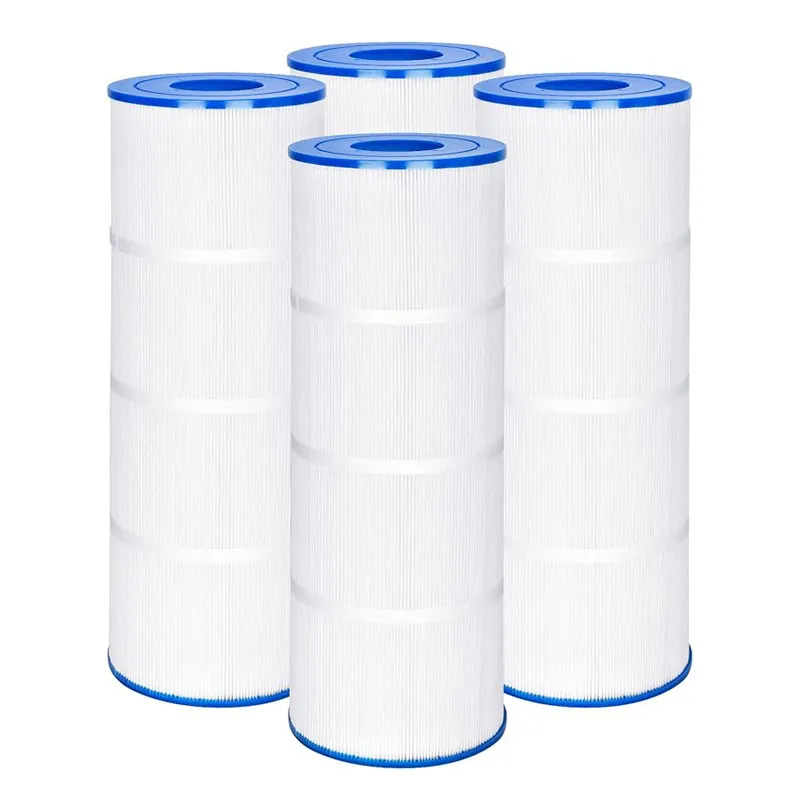

• Pool & Spa Filter Cartridges: Spiral tape reinforcement for residential and commercial pleated pool filters.
• Polyester & Non-Woven Cartridges: Securing the outer pleats of non-woven sediment water filter elements.
• Heavy-Duty Industrial Filters: Wrapping outer reinforcement bands on robust technical filter elements used in fluid purification lines.

Why Choose Fupei?

• Rigorous Factory Pre-Calibrations: We test every pool filter strapping machine with real cartridges and hot-melt adhesives before dispatch, ensuring flawless out-of-the-box performance.
• Custom Voltage Support: We adjust internal electrical grids to match your region’s voltage standards (such as 3-Phase 380V/50Hz, 220V/60Hz, or 415V/50Hz) for safe local operations.
• Professional Technical Package: Your machine ships with detailed technical wiring diagrams, operations manuals, and permanent remote video troubleshooting support.
