Filter Mesh Nipping Machine for Bonding and Pressing
High-precision outward-bite filter mesh nipping machine designed for fast, seamless cold-join connection of metal sheets without welding or adhesives. Boasting a nipping precision of ±0.05 mm, an applicable diameter range of 90–400 mm, and a fixed 4 mm bite width. If your factory also requires premium metal sheets or expanded wire structures, please view our Filter Metal Mesh & Wire Mesh.
This professional Filter Mesh Nipping Machine is purpose-built to connect metal plates and sheets via precise, cold-joint mechanical nipping. By applying controlled and uniform pressure directly to the edges of the metal plates, it achieves tight, completely seamless joints that resist wear and pressure without the need for welding, chemical adhesives, or manual hand hammering.
Classified as a specialized filter machinery, it features an outward-bite mechanical design optimized for handling standard metal mesh production. It is highly favored by global manufacturers seeking to lower overall labor costs, minimize operator fatigue, and deliver robust protective frames for industrial filtration cartridges.
Technical Specifications
To ensure exact mechanical compatibility with your filter production workshop, the factual parameters are detailed below:
Technical Parameters
Factual Specifications
Type
Outward bite
Machine Width
610 mm
Material Thickness Range
0.4 – 0.8 mm
Applicable Diameter
90 – 400 mm
Bite Width
4 mm (Fixed for consistency)
Nipping Precision
±0.05 mm
Processing Speed
8 – 10 meters / hour
Compatible Materials
Perforated metal, expanded metal, aluminum plates, other metal sheets
Warranty Period
1 Year (material/workmanship)
Packaging Details
Shrink wrap + wooden box
Origin
China
Key Features & Mechanical Advantages
1. High-Precision Joint Processing
The machine delivers an exceptional nipping and clamping accuracy of ±0.05 mm, which is 30% higher than traditional manual or semi-automatic alternative machinery. This high-precision locking prevents leaks, seam gaps, or structural deformation under high stress.
2. Eco-Friendly Cold Joining Mechanics
By generating direct mechanical joints without welding heat or chemical bonding agents, this machine prevents thermal media damage and volatile emissions. The interlocked metal sheets maintain structural integrity and a clean, industrial appearance.
3. Versatile Metal Sheet Compatibility

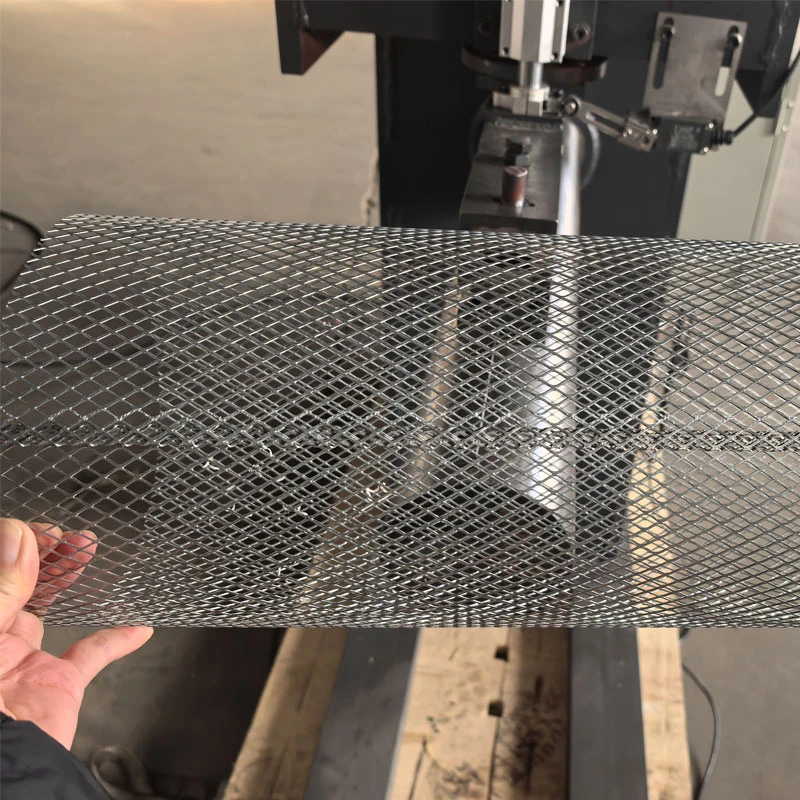

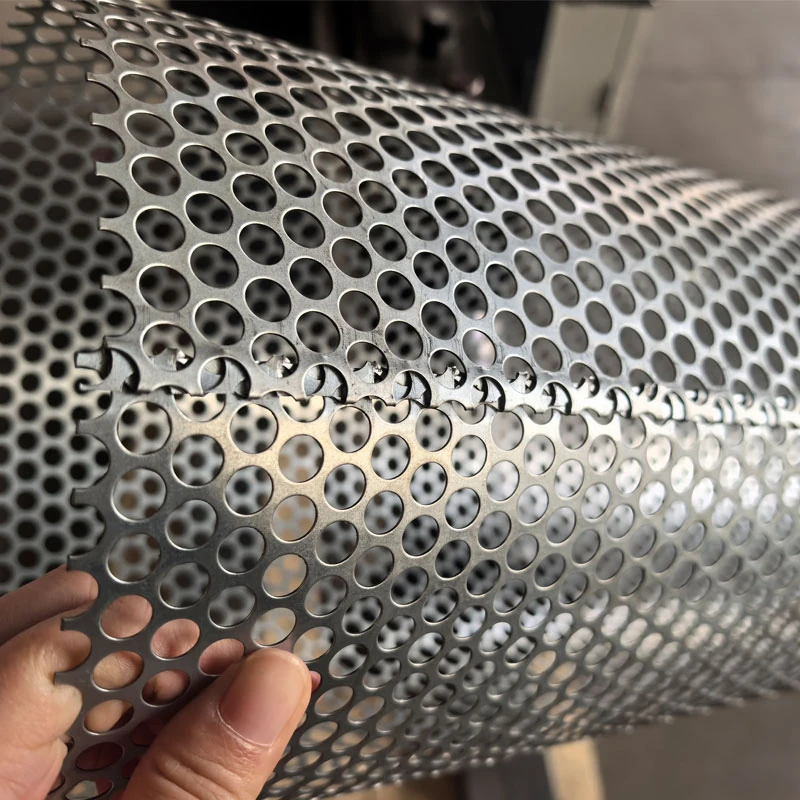

The rolling and pressing system is highly compatible with varied metal raw materials, including perforated metal, expanded metal sheets, and aluminum plates. This versatility reduces the need for multiple machines, thereby simplifying production and reducing costs.
4. Labor-Saving Ergonomic Design
The automated clamping cycle reduces overall physical labor intensity on the factory floor by up to 60%. This significantly mitigates operator fatigue while maintaining a stable, continuous production speed of 8 to 10 meters per hour.
Applications & Industrial Uses
This specialized outward-bite seaming machine is widely deployed in production lines manufacturing:

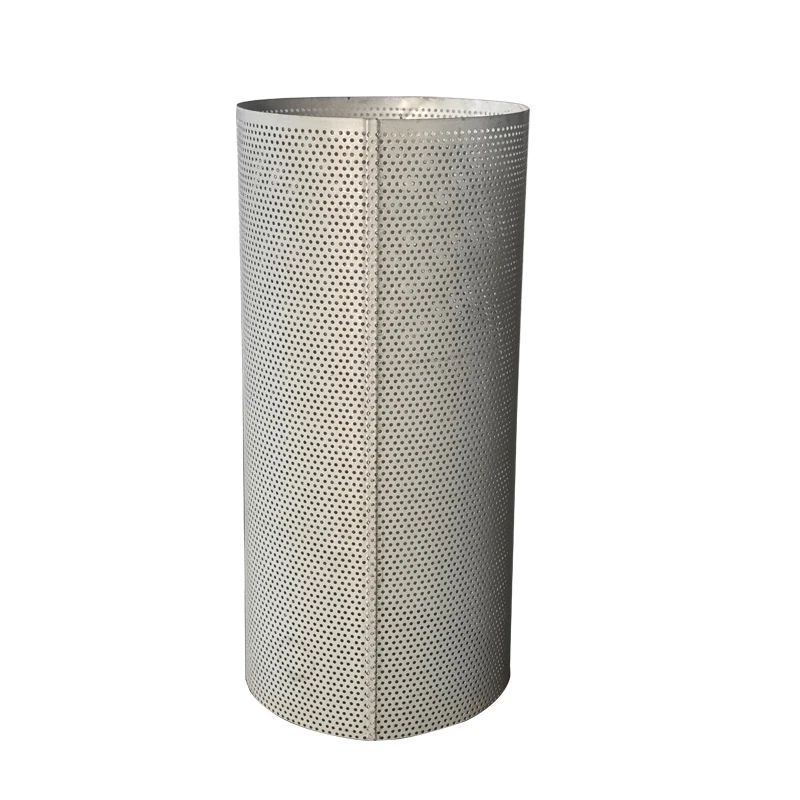

Water Treatment Filter Cages: Forming outer joints for wastewater and drinking water purification mesh cartridges.
Chemical Filtration Cartridges: Securely connecting sheet metal joints to prevent chemical leakages in industrial plants.
Air Filtration Supports: Manufacturing sturdy metal outer cages and inner frames for heavy-duty industrial air filters.
Why Partner with Fupei?
Rigorous Pre-Shipment Inspection: Every filter mesh nipping machine is thoroughly tested with actual metal sheets at our facility, ensuring the rolling dies are aligned and the bite width remains consistent before leaving our factory.
Global Voltage Compatibility: We configure the internal electrical motors, control relays, and gearboxes to perfectly support your local industrial grid (such as 3-Phase 380V/50Hz, 220V/60Hz, or 415V/50Hz) for instant plug-and-play installation.
Global Technical Assistance: We provide a comprehensive 1-year warranty, complete electrical schematics, and permanent remote video troubleshooting support to keep your production line running smoothly.
Frequently Asked Questions
A: Unlike generic seaming machines designed for non-metals or low-precision packaging joints, this machine is specialized for metal plates in industrial filtration. It delivers superior accuracy (±0.05 mm vs 0.15 mm) and higher processing speeds of 8 to 10 m/h.
A: No, metal sheets thinner than 0.4 mm may tear during the nipping process, while sheets thicker than 0.8 mm may strain the tool. Please contact our engineering team if you require custom thickness configurations. If you require standard sheets, please view our Filter Metal Mesh & Wire Mesh category.
A: The warranty covers all defects in material and workmanship during standard industrial operations. It includes permanent remote video technical support and rapid shipping of core spare parts.
